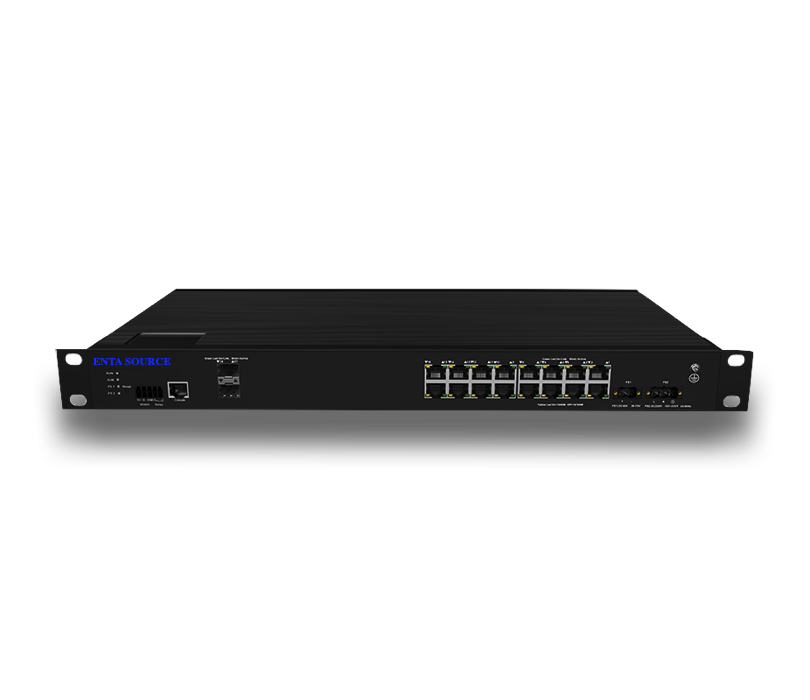

Gigabit Switch Managed 2 port SFP+ (10G) 16 Port 10/100/1000Mbps RJ45 Gigabit PoE
ETMG2TG16GTP
Fiber Port: 2x10G (SFP+) LAN Port: 16x10/100/1000BASE-T PoE
5 years Warranty
Switching capacity: 160G
Packet forwarding rate: 95.23 Mpps
Management: CLI, SSH, Telnet
Power Supply: 2 x Power Supply Redundancy
|
Physical Interface |
|
|
Network Interface |
2 x 10G SFP+, 16 x 1000BASE-T |
|
Management Interface |
Console, Telnet, WEB management (GUI), SNMP v1/v2c, User Management, System Log |
|
Power Supply |
|
|
Power Supply |
2 Power supply Redundancy |
|
Input voltage |
DC36-75V/AC 100-240V 50-60HZ |
|
Power consumption |
<36W |
|
PoE |
|
|
PoE |
16xPoE 802.3af/at Power Consumsion with PoE <276W |
|
Layer 2 Performance |
|
|
Switching Capacity |
160G |
|
Packet forwarding rate |
95.23Mpps |
|
MAC address table |
16K |
|
VLAN |
4K VLAN |
|
Link Aggregation |
12 Group |
|
Layer 3 Performance |
|
|
Static Route |
256 Entry |
|
Traffic Quality |
|
|
QoS |
Support |
|
ACL |
Support |
|
Protection |
|
|
IP Protection |
IP 40 |
|
Dimensions |
|
|
Sizes |
440*245*44mm |
|
Weight |
3.6Kg |
|
Rack Mount |
Support
|
